Proyecto 22 Medidor de Ruido

1. Descripción

El medidor de ruido podrá usar el número de puntos en la matriz LED para reflejar la intensidad del ruido.

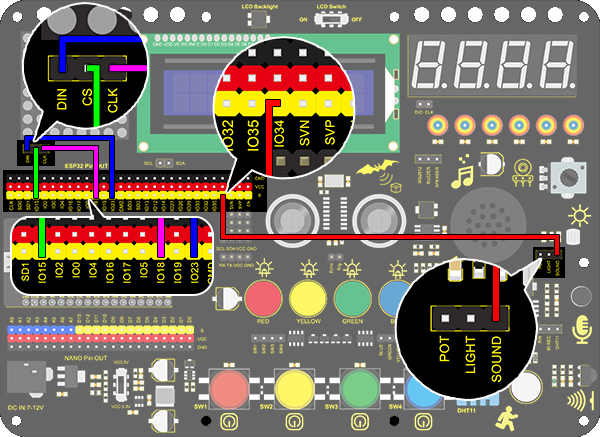

2. Diagrama de Conexiones

3. Código de Prueba

/*
  keyestudio ESP32 Inventor Learning Kit
  Project 22 Noisemeter
  http://www.keyestudio.com
*/
#include <LedControl.h>

int DIN = 23;
int CLK = 18;
int CS = 15;
int sensor = 34;

LedControl lc=LedControl(DIN,CLK,CS,1);
byte data_val[8][8]= {
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x7f, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0xff, 0x7f, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01}
  };


void setup()
{
 lc.shutdown(0,false);       //When powering on, MAX72XX is in the power saving mode.
 lc.setIntensity(0,8);       //Set the brightness to the maximum
 lc.clearDisplay(0);         //Clear the display
}

void loop()
{
  int val = analogRead(sensor);
  Serial.println(val);
  int temp = map(val,0,800,0,7);  //The range of analog values in the 0-800 is the most appropriate
  for(int i=0;i<8;i++)
  {
    lc.setRow(0,7-i,data_val[temp][i]);
  }
}

4. Código de Prueba

Cuanto mayor sea el valor de sonido detectado por el sensor de sonido, más puntos se encenderán en la matriz LED.
