Progetto 22 Misuratore di Rumore

1. Descrizione

Il misuratore di rumore sarà in grado di utilizzare il numero di punti sulla matrice LED per riflettere l’intensità del rumore.

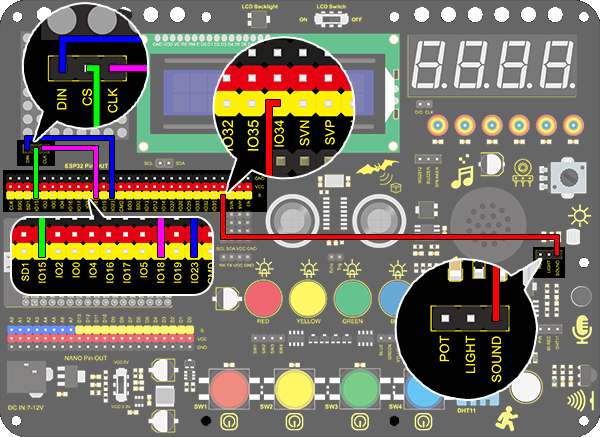

2. Schema di Collegamento

3. Codice di Test

/*
  keyestudio ESP32 Inventor Learning Kit
  Project 22 Noisemeter
  http://www.keyestudio.com
*/
#include <LedControl.h>

int DIN = 23;
int CLK = 18;
int CS = 15;
int sensor = 34;

LedControl lc=LedControl(DIN,CLK,CS,1);
byte data_val[8][8]= {
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x00, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x00, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x00, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0x00, 0x7f, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01},
  {0xff, 0x7f, 0x3f, 0x1f, 0x0f, 0x07, 0x03, 0x01}
  };


void setup()
{
 lc.shutdown(0,false);       //When powering on, MAX72XX is in the power saving mode.
 lc.setIntensity(0,8);       //Set the brightness to the maximum
 lc.clearDisplay(0);         //Clear the display
}

void loop()
{
  int val = analogRead(sensor);
  Serial.println(val);
  int temp = map(val,0,800,0,7);  //The range of analog values in the 0-800 is the most appropriate
  for(int i=0;i<8;i++)
  {
    lc.setRow(0,7-i,data_val[temp][i]);
  }
}

4. Codice di Test

Più alto è il valore del suono rilevato dal sensore acustico, più punti si accendono sulla matrice LED.
